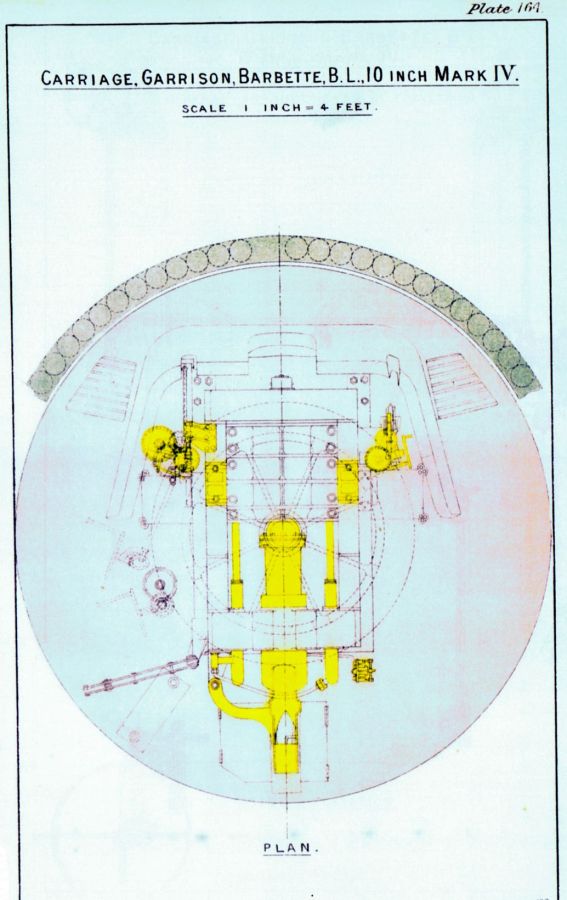

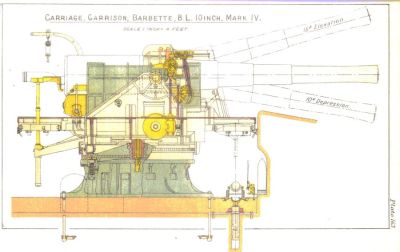

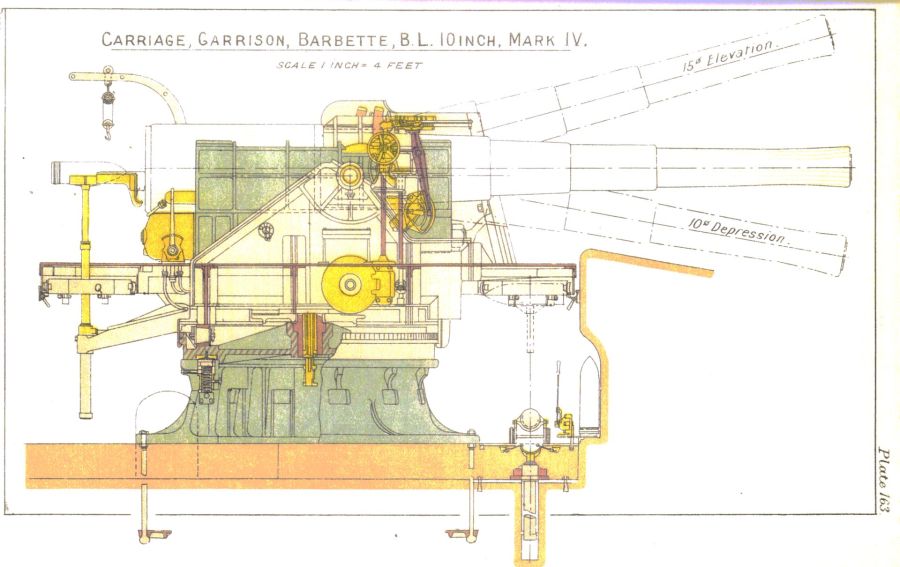

10 inch B.L. Barbette Mark IV
The 10inch B.L. Barbette Mounting Mark IV was similar to the 9.2inch B.L. Mk V.
The cradle is similar to the 9.2inch MkV .
The shell pit shield and and upper shield are similar but with no side shields.
