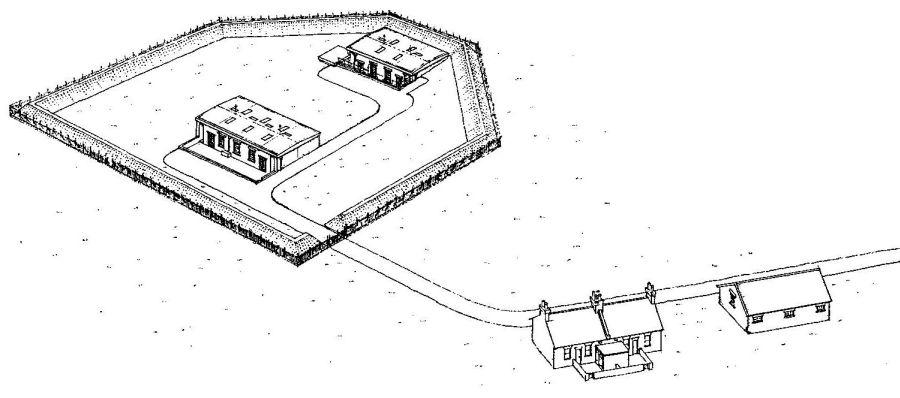

Isometric drawing of Woldingham

Isometric drawing of Woldingham

Plan of Woldingham

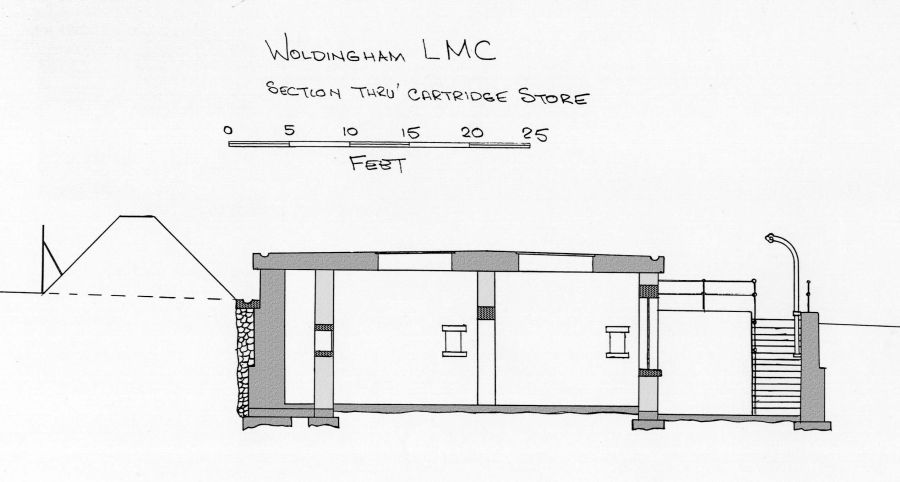

Section through Cartridge Store

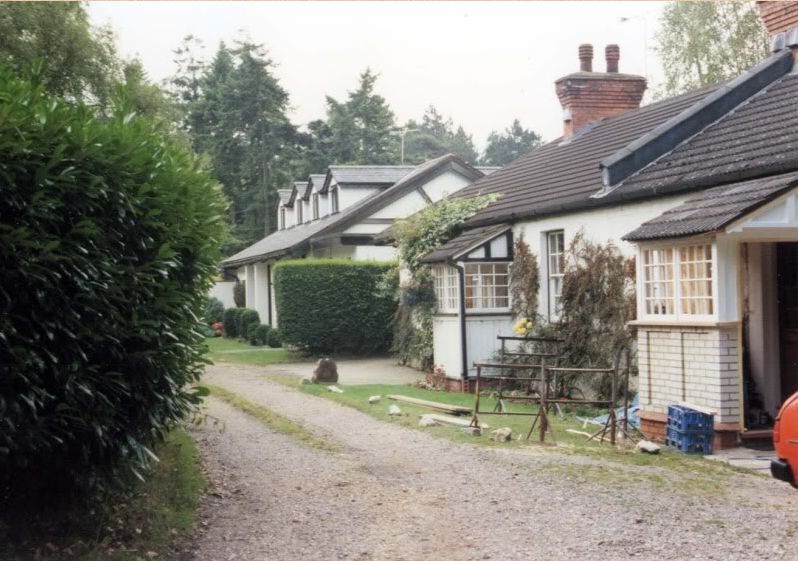

Woldingham LMC is approached along a track on the west side of the magazine compound. Along the track you first come to the Tool Store which has been converted to a chalet bungalow.

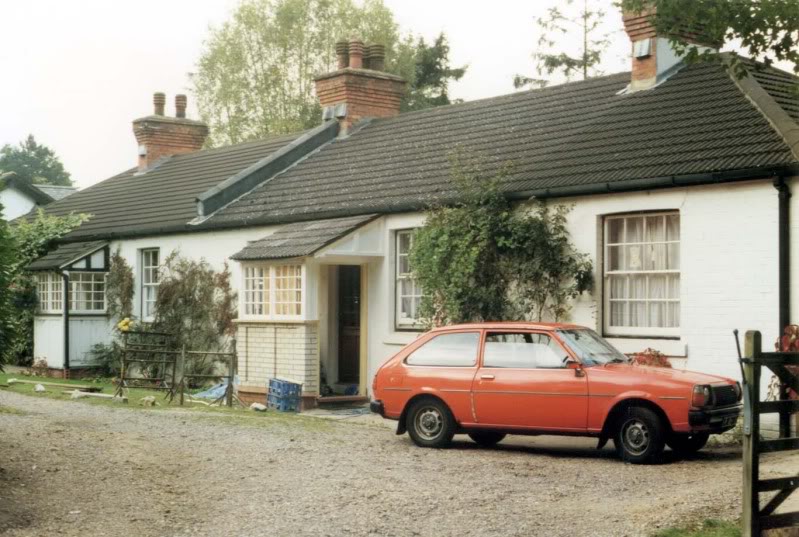

Beyond the Tool Store you come to the Caretakers' Cottages which are both still occupied.

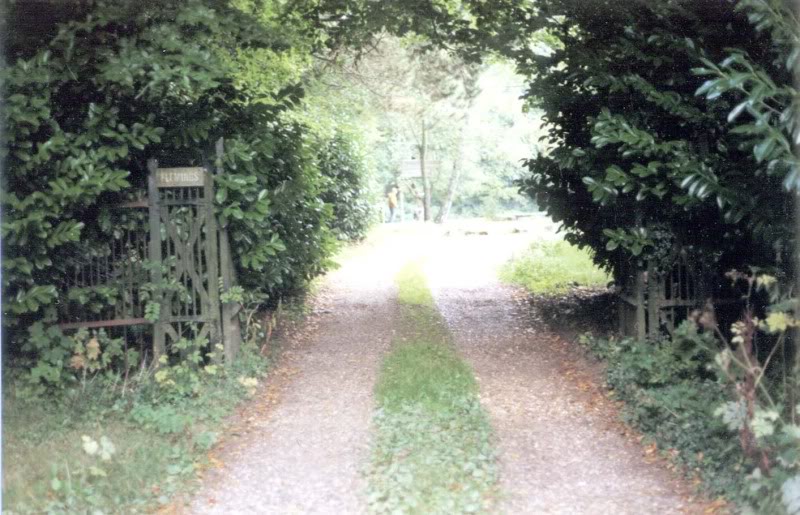

The track then turns to enter through the side of the magazine compound by the original gates.

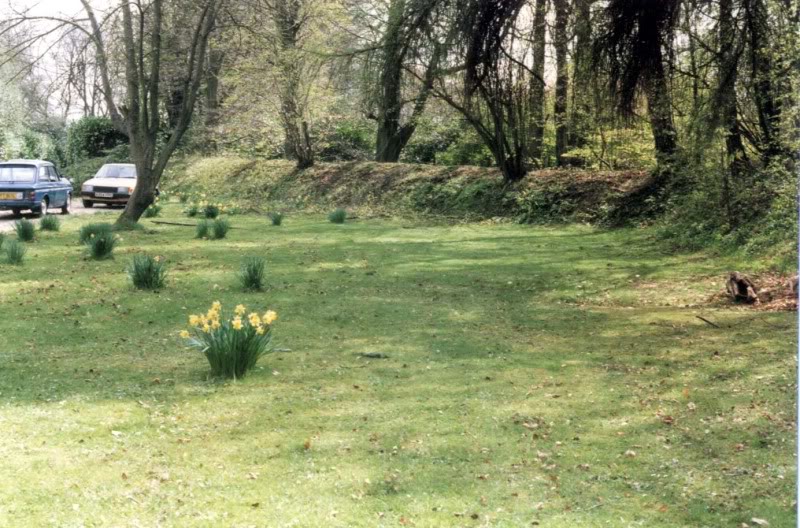

The compound is surrounded by a earth bank

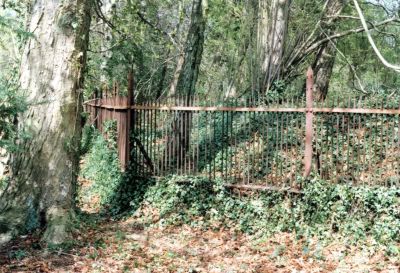

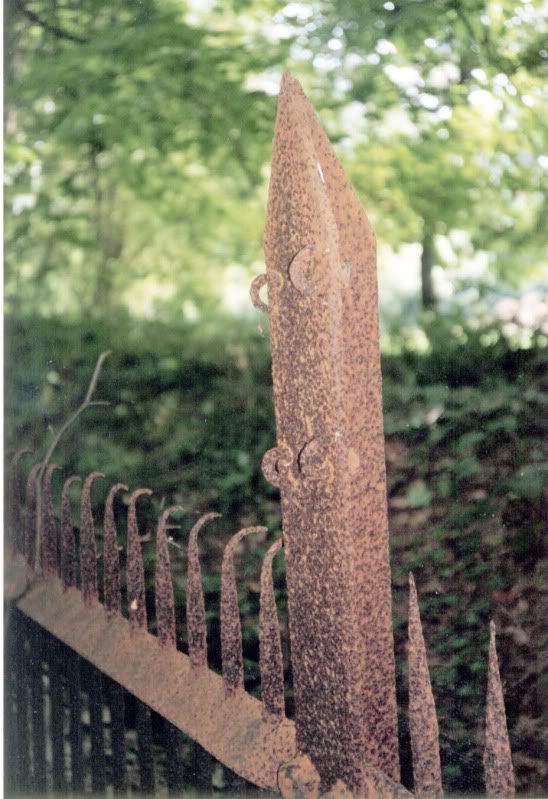

and the bank, in turn is surrounded by a steel fence

which had strands of barbed wire strung between the posts, the loops for which are still visible.

Inside the compound you first come to the Shell Store, set slightly below ground level. This is used as a garage and store buy the present owners. You can see where the retaining wall has been cut through and double doors inserted to allow a car to enter.

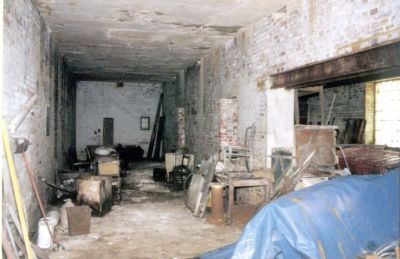

Inside it is divided in to two bays by a brick wall which has also had an opening cut through it in line with the inserted double doors.

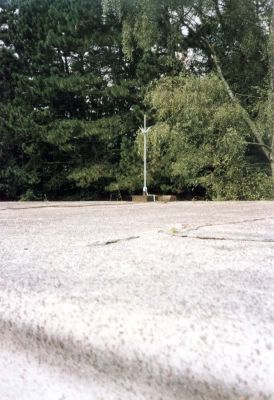

The roof of the Shell Store still has the Lightning Conductors on the roof.

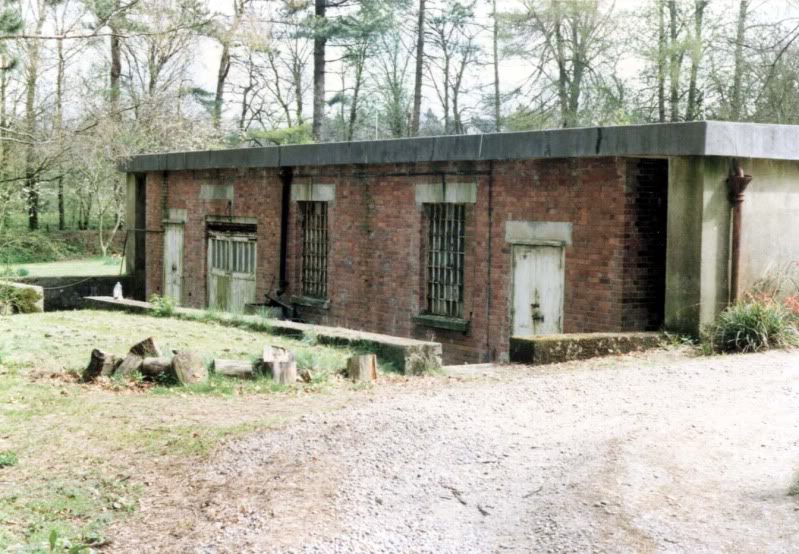

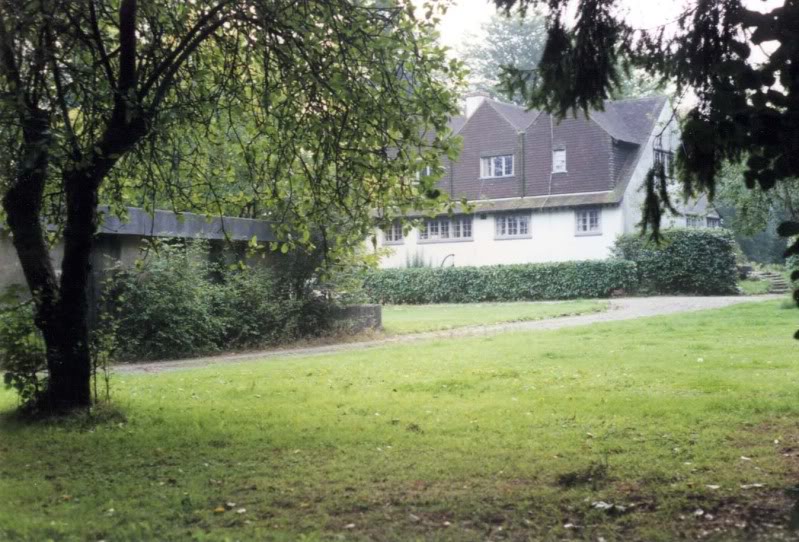

Beyond the Shell Store is the Cartridge Store, which is deeper set in to the ground, and this has a house built on top of it. Inside it is divided in the same way to the Shell Store by a brick wall. The store is used as a basement for the house and a hole has been cut through the roof to allow a stair to be inserted.

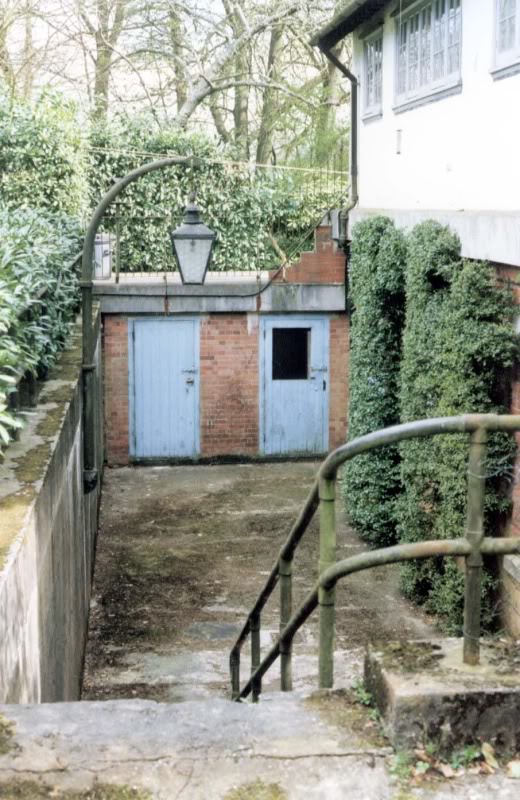

Because of the depth the Cartridge Store is set into the ground a Davit is provided to facilitate movement of the boxes containing the cartridges. This has been re-used as a bracket for an ornamental lamp. Beyond the Davit are two doors in a small extension, one for the Lamp Room and the other for the Fuse & Tube Store.

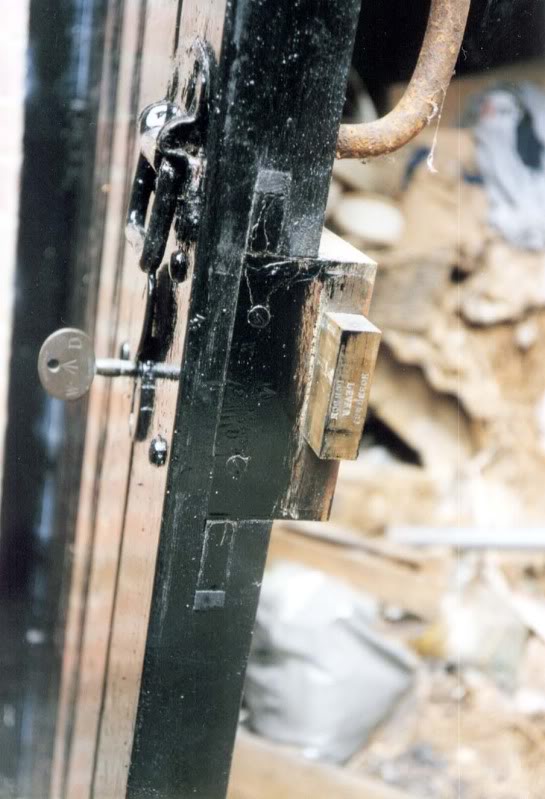

The doors appear to be original and fitted with the original locks.

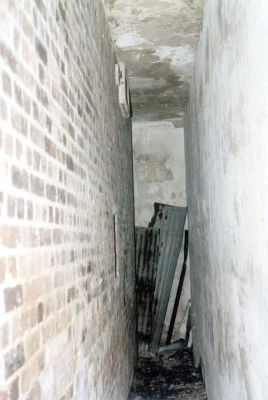

Both Stores are surrounded by Lighting Passages to allow lamps to be placed in the lamp recesses and ventilation adjusted. The lamp recess and wooden ventilation shutter can just be made out on the left hand wall.
